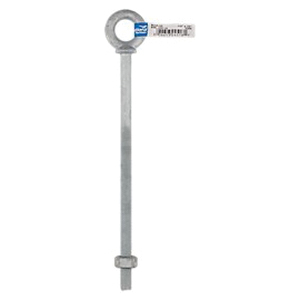

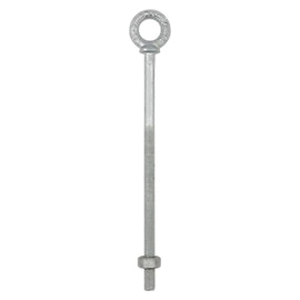

National Hardware N245-183 Eye Bolt, 1/2-13 Thread, Coarse Thread, 5-7/8 in L Thread, 1 in ID x 1-3/4 in OD Dia Eye
- Model Number: N245-183
- UPC: 038613245181
- Store SKU:
-
National Hardware N245-183 Eye Bolt, 1/2-13 Thread, Coarse Thread, 5-7/8 in L Thread, 1 in ID x 1-3/4 in OD Dia Eye
-
Promo Price:
-
- Supplier SKU:
- Web SKU: 100090399
- Supplier SKU:
National Hardware N245-183
General-purpose eye bolt used where high-strength is required. Ideal for marine and agricultural applications. Has shoulder so bolt can be tightened in place. Forged steel for great strength. Galvanized for corrosion-resistance. With hex nut.
| Finish | : | Galvanized |
| Includes | : | Hex Nuts |
| Material | : | Steel |
| Overall Length | : | 11-29/32 in |
| Shank Diameter | : | 1/2 in |
| Shank Length | : | 10 in |
| TPI/Pitch | : | 13 |
| Thread Type | : | Coarse |
| Working Load Limit | : | 2200 lb |
| Thread Size | : | 1/2-13 |
| Thread Length | : | 5-7/8 in |
| Eye Diameter | : | 1 in ID x 1-3/4 in OD |
- Bar code label is color-coded to identify wire size
- Pintle punched for 5/16 in (1/2 in size) or 3/8 in (5/8 in size) bolts
- Strength (SWL) is clearly defined on label
- When subjected to 312 hr of salt fog spray testing, zinc-plated hardware showed severe corrosion while hardware with WeatherGuard protection withstood these harsh conditions with very little deterioration
Line Drawing
