      EATON TR7735W-BOX
      EATON

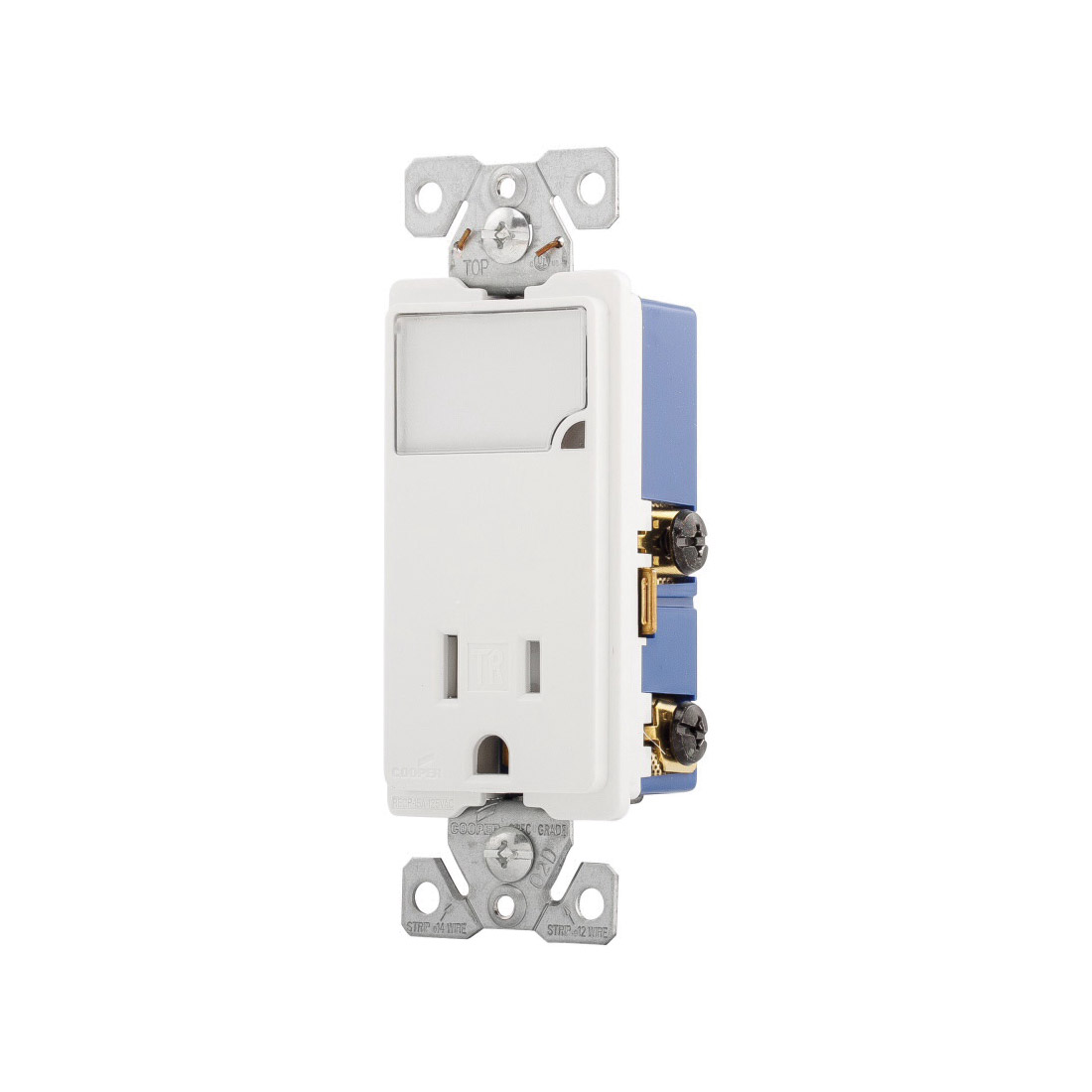

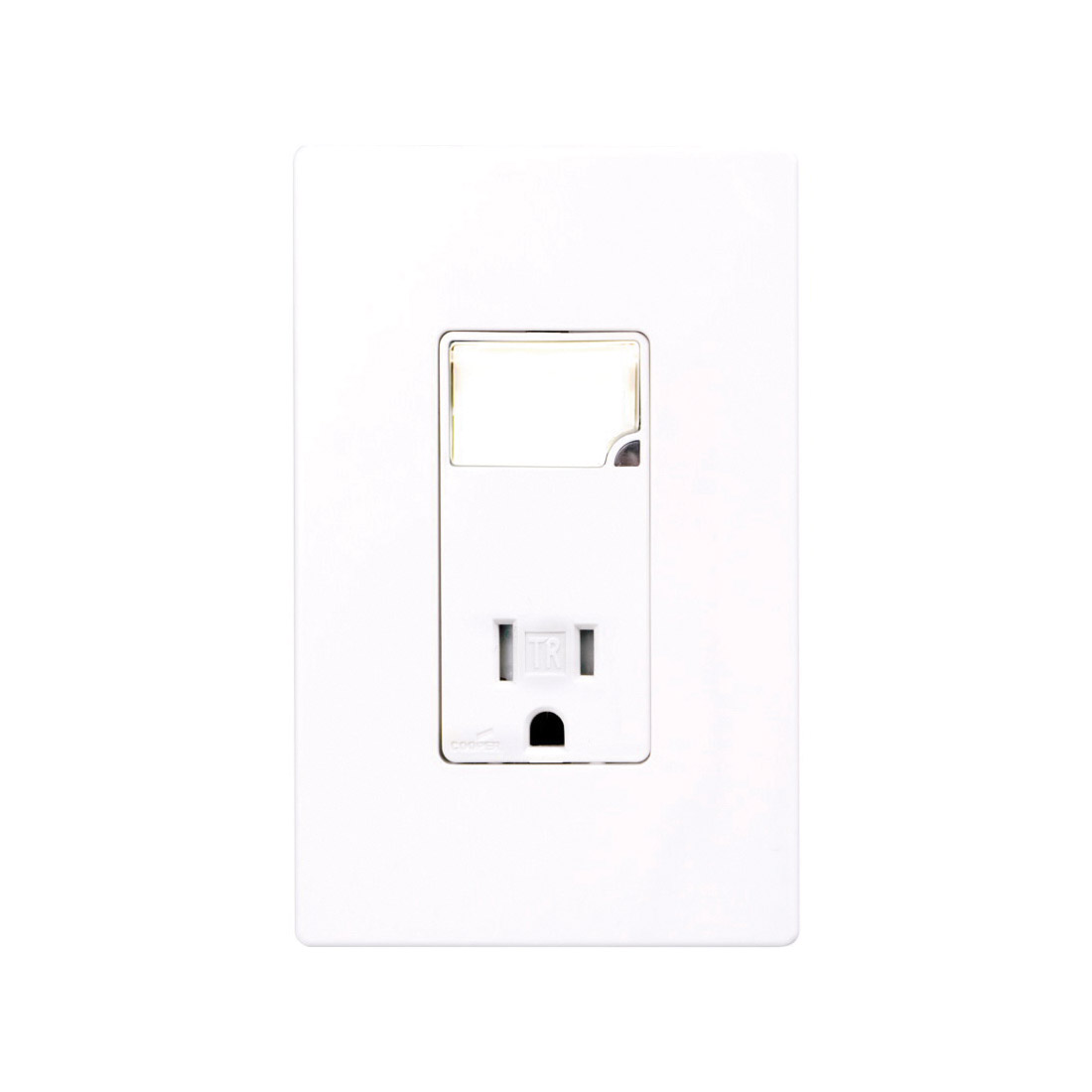

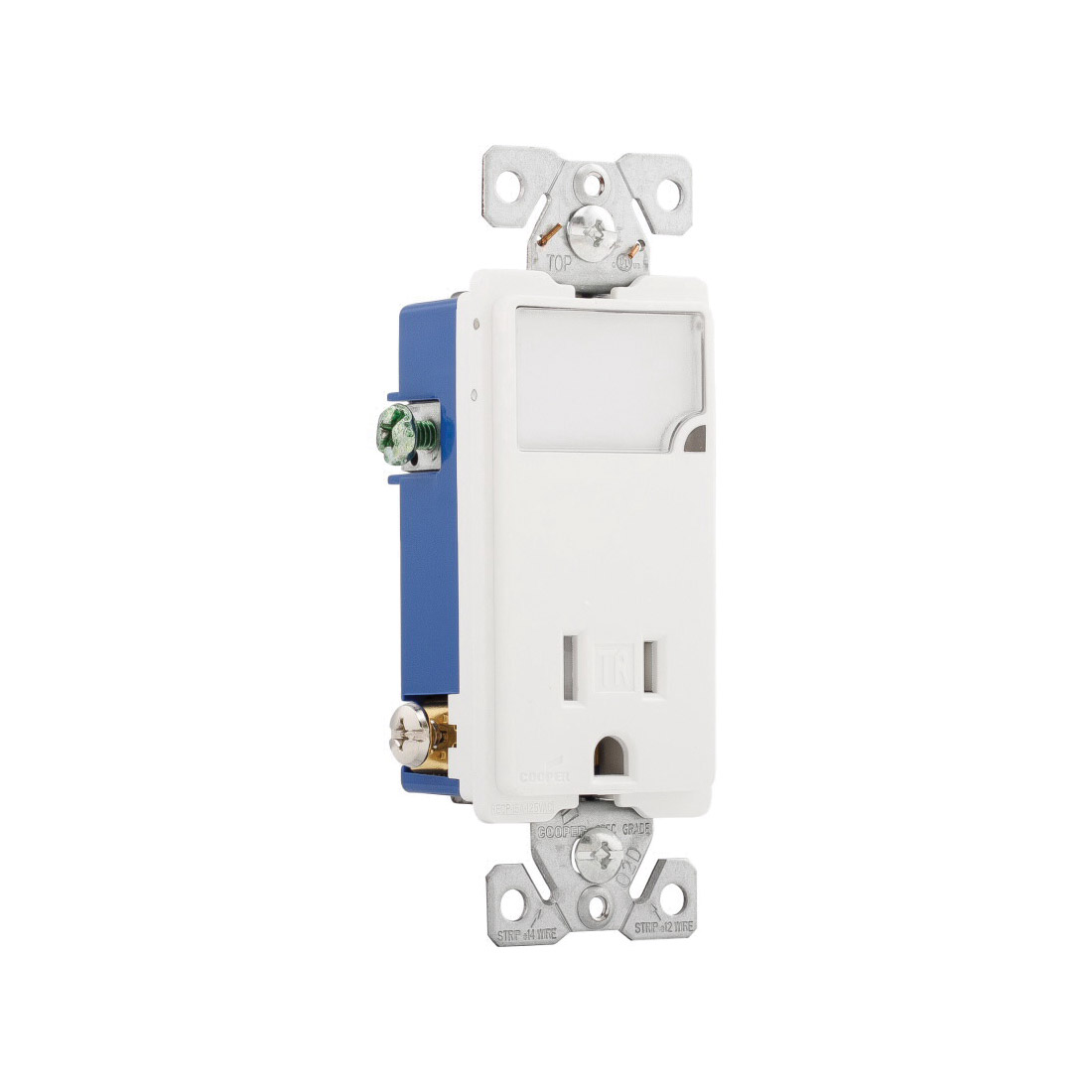

      Eaton TR7735W-BOX Nightlight and Combination Receptacle, 2-Pole, 120/277 V, 15 A, Back and Side Wiring

      • Model Number: TR7735W-BOX
      • UPC: 032664727689
      • Store SKU: loading

      • Eaton TR7735W-BOX Nightlight and Combination Receptacle, 2-Pole, 120/277 V, 15 A, Back and Side Wiring

      • loading

        Promo Price: loading

      • Quantity
        • Availability:
        • Add To Cart
          Add to Favorite List
          • Supplier SKU: loading
          • Web SKU: 103090999
        EATON TR7735W-BOX

        Eaton Nightlight and Combination Receptacle, 120/277 V, 15 A, Number of Poles: 2, Number of Wires: 3, Wiring Type: Back and Side, Wire Size: 14 to 12 AWG, NEMA Configuration: NEMA 5 to 15R, Flush Mounting, Thermoplastic, Dimensions: 2 in L x 2 in W x 4-1/4 in H

        Dimensions    :    2 in L x 2 in W x 4-1/4 in H
        Material    :    Thermoplastic
        Mounting Type    :    Flush
        Voltage Rating    :    120/277 V
        Wire Size    :    14 to 12 AWG
        Wiring Type    :    Back and Side
        Number of Poles    :    2
        Number of Wires    :    3
        NEMA Configuration    :    NEMA 5 to 15R
        Current Rating    :    15 A
        • Nightlight is dimmable to desired setting
        • Nightlight is controlled by a photo sensor that turns on in the dark, off in light
        • Easily disable photo sensor for Hi/Med/Low/Off settings
        • Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper is used
        • Thermoplastic top and back-body are virtually unbreakable to deliver years of durable performance
        • Steel mounting strap is zinc-plated for added corrosion resistance
        • Ultrasonic welding and integrated construction of the strap and body provide great ground integrity even under heavy use
        • Convenient built-in wire strippers speed installation
        • Tri-combo screw heads offer greater installation flexibility
        • pdfSpecification Sheet https://assets.unilogcorp.com/187/ITEM/DOC/EATON_103090999_Specification_Sheet.pdf
