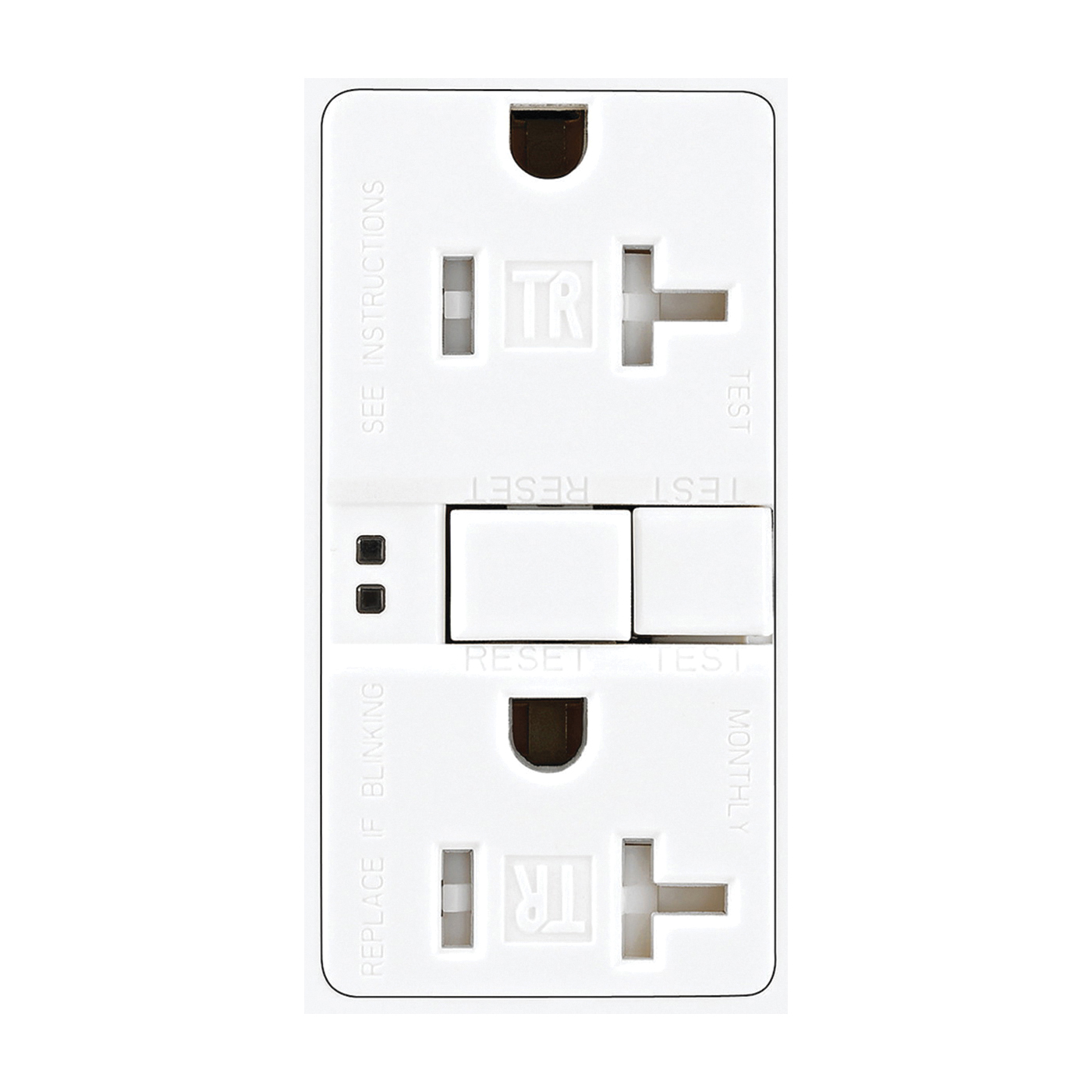

Eaton Wiring Devices TRSGF20W GFCI Duplex Receptacle, Nylon, White, 2-Pole, 20 A, 125 V, Back, Side Wiring
- Model Number: TRSGF20W
- UPC: 032664739989
- Store SKU:
-
Eaton Wiring Devices TRSGF20W GFCI Duplex Receptacle, Nylon, White, 2-Pole, 20 A, 125 V, Back, Side Wiring
-
Promo Price:
-
- Supplier SKU:
- Web SKU: 100036365
- Supplier SKU:
EATON TRSGF20W
GFCI receptacles are designed with the safety of the user in mind. In commercial and industrial areas like public bathrooms, breakrooms and food service areas, the NEC® requires GFCI receptacles. Arrow Hart self-test GFCI receptacles are UL listed and fully compliant with all of the latest UL943 Class A GFCI and UL498 requirements. The self-test GFCIs conduct an auto-matic test periodically to ensure GFCI protection. The device will trip and will not reset if GFCI protection is not available. Additionally, GFCIs incorporate a safety lock out function to protect against miswired line load connections and GFCI circuitry damage.
| Dimensions | : | 4.2 in L x 1.68 in W x 1.27 in D |
| Frequency Rating | : | 60 Hz |
| Includes | : | Wallplate |
| Material | : | Nylon |
| Mounting Type | : | Wall |
| Operating Temperature | : | -35 to 66 deg C |
| Voltage Rating | : | 125 V |
| Wire Size | : | 14 to 10 AWG |
| Wiring Type | : | Back, Side |
| Number Of Poles | : | 2 |
| Number Of Wires | : | 3 |
| Color | : | White |
| NEMA Configuration | : | 5-20R |
| Current Rating | : | 20 A |
- Performs periodic self-tests to ensure integrity of GFCI protection
- Large visual trip indicator light gives quick notification of a tripped or "end of life" condition
- Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure and provides redundant measure of ground continuity where jumper is used
- Ground termination with back wire clamp provides secure wiring and reduces installation time
- Tamper-resistant shutters resist the insertion of foreign objects
- Line side terminals are backed out and staked for fast installation
- Horizontal test/reset button alignment provides larger unobstructed area
- Test and reset buttons are color-matched to provide great aesthetics
- Tapered back wire openings handle multiple wire sizes and types for applications up to #10 AWG solid or stranded wire
- When downstream receptacles are wired from load side, a 20 A feed-through rating offers full protection
