Simpson Strong-Tie H2AZ

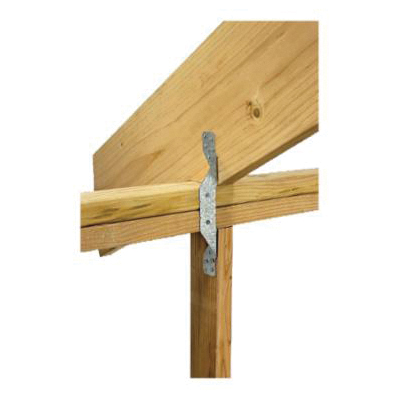

The H2A single-sided hurricane tie makes a direct connection between the rafter or truss, the top-plates and the wall studs. A value-added solution for high-wind applications, it is designed to resist uplift and lateral loads. By capturing all three framing members, the H2A eliminates the need for a separate top-plate-to-stud connection.
| Applicable Material | : | Seismic Forces, Wind |
| Color | : | Silver |
| Depth | : | 1.531 in |
| Finish | : | Galvanized |
| Length | : | 10.438 in |
| Material Gauge | : | 18 ga |
| Material | : | Steel |
| Width | : | 1.531 in |
- Forms part of a continuous load path to resist wind and seismic forces
- Suitable for both wood and cold-formed steel applications
- ZMAX® galvanization offers extra corrosion resistance for exterior and treated-wood applications
- Hurricane ties do not replace solid blocking
- When installing ties on plated trusses (on the side opposite the truss plate) do not fasten through the truss plate from behind
