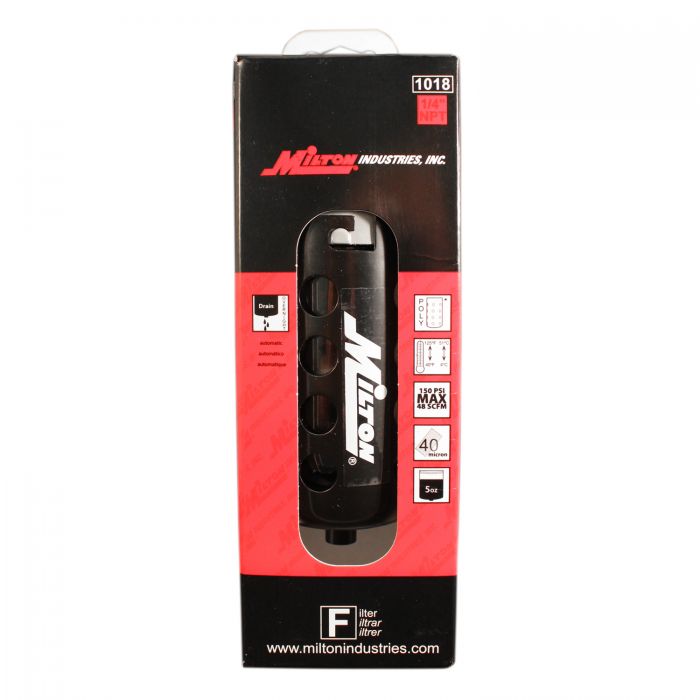

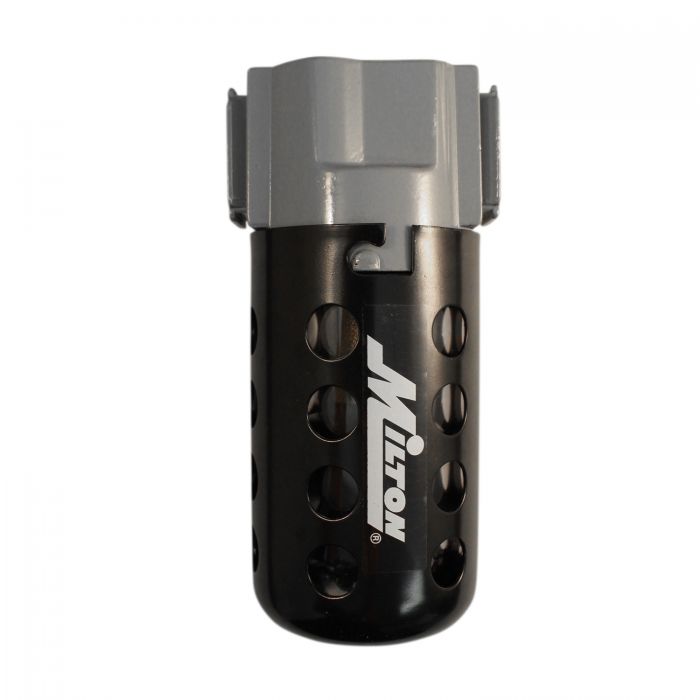

Milton 1018 Micro Filter, Metal/Polycarbonate, 1/4 in Connection Size, 1/PK

  • Model Number: 1018
  • UPC: 030937110183
  • Store SKU: loading
  • Milton 1018 Micro Filter, Metal/Polycarbonate, 1/4 in Connection Size, 1/PK

  • loading

    Promo Price: loading

  • Quantity
    • Availability:
      • Supplier SKU: loading
      • Web SKU: 102324983
    MILTON 1018

    This 1/4 in NPT MILTON micro filter is supplied with a pre-assembled internal automatic overnight drain, which will operate when an air supply is shut down or when liquid has gathered in the filter bowl. The included three-stage baffle system offers exceptional moisture removal. This micro filter includes a porous bronze sintered 40 um filter element which allows less pressure drops and longer cleaning intervals. Micro filters remove harmful water or oil condensate, pipe scale, dirt and rust from compressed air systems and are used as pre-filters to coalescing type filters to ensure high-efficiency and long element life. This polycarbonate bowl has a capacity of 5 oz and is protected by a safety metal bowl guard. Maximum of 150 psi and 48 scfm.

    Dimensions    :    6-1/4 in L x 2-3/4 in W x 2-11/16 in H
    Specifications    :    1/4 in Connection Size, NPT Connection Type, 150 psi Maximum Pressure, 48 scfm Maximum Airflow, 40 to 120 deg F Operating Temperature, 5 oz Bowl Capacity
    Material    :    Metal/Polycarbonate
    • Maximum of 48 cfm at 100 psi
    • Install upstream from regulators
    • Sintered bronze elements are permanent and cleanable
    • Can be set up as a modular unit as well
