MAC'S Hardware
Pass & Seymour

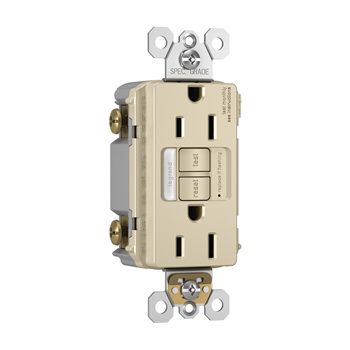

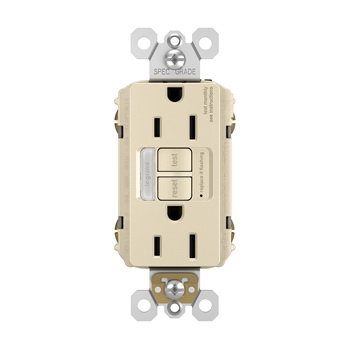

Pass & Seymour radiant 1597NTLTRLACCD GFCI Outlet, 125 V, 15 A, NEMA: NEMA 5-15R, Back and Side Wiring
- Model Number: 1597NTLTRLACCD
- UPC: 785007135688
- Store SKU:
-
Pass & Seymour radiant 1597NTLTRLACCD GFCI Outlet, 125 V, 15 A, NEMA: NEMA 5-15R, Back and Side Wiring
-
Promo Price:
-
- Supplier SKU:
- Web SKU: 102269081
- Supplier SKU:
Pass & Seymour 1597NTLTRLACCD
The Radiant® collection is a step up from the standard with simple, classic options in wiring devices, home automation controls and screwless wall plates that complement today's homes. The self-test GFCI conducts an automatic test every three seconds, ensuring it's always ready to protect. If the device fails the test, the indicator light flashes to signal that the GFCI should be replaced. It also has our proven SafeLock™ protection feature if critical components are damaged and protection is lost, power to the receptacle is disconnected.
| Current Rating | : | 15 A |
| Dimensions | : | 4.2 in H x 1.73 in W x 1.03 in D |
| Grounding Type | : | Self-Grounded |
| Mounting Type | : | Wall |
| NEMA Rating | : | NEMA 5-15R |
| Operating Temperature | : | -35 to 66 deg C |
| Short Circuit Current Rating | : | 10 kA |
| Type | : | Night Light |
| Voltage Rating | : | 125 V |
| Wire Size | : | 14 to 10 AWG |
| Wiring Type | : | Back and Side |
| Color | : | Light Almond |
| Material | : | Nylon/Thermoplastic |
- Patented shutter system helps prevent improper insertion of foreign objects meeting National Electrical Code® tamper-resistant requirements
- Conducts an automatic test every three seconds, ensuring it's always ready to protect
- Thinner than competitors GFCI receptacles leaves more room for wires in the box
- Sealed night light with high impact-resistant Lexan® lens prevents tampering
- Energy efficient LED has an average life expectancy of 20 years and photocell automatically turns light on in dark and off in daylight
- Feed-thru wiring configuration allows GFCI to protect downstream receptacles
- Prevents line-load reversal miswire no power to the face or downstream receptacles if wired incorrectly
- Dual-direction test and reset button colors match the device face
